AHONA - Alternative Heating Of North America

Vigas

18 DP

Vigas 18 DP

Certified to UL391 and CSA-B366.1
CSA-B-415.1

Output: 41,000-62,000 BTU*

BTU rating for optimum output rated at 62,000 BTU*

Fuel: wood, bio bricks, bio fuel, and pellets*

Features:

  • Long service life

  • Ecological operation

  • Excellent combustion efficiency

  • Switches easily from wood to pellets

  • Quality Pellet Hopper provided



Product Description and Documen ts

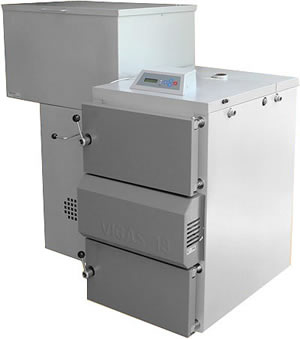

The Vigas Model 18 DP is a wood gasification unit designed for firewood, bio bricks, bio-fuel or pellets at fulfillment of the emission conditions of the 3rd CSN EN 303-5 standard. Boilers are welded from boiler steel sheets. The combustion of different fuels and materials in this boiler (i.e. plastic) is inadmissible. The boiler is designed in at 41,000-62,000 BTU power output.

(*See technical data sheet for specifics for this model).

This boiler size is appropriate for heating applications requiring utilization of smaller BTU output capacities. The boiler is also designed for heating of both the closed and the opened heating systems.

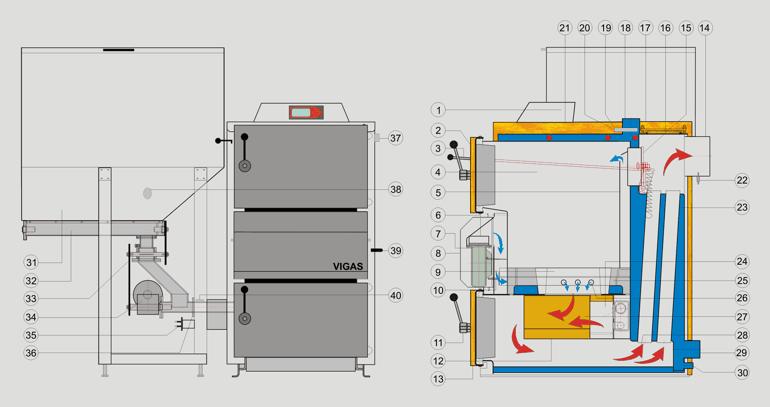

Vigas 18 DP

1. AK Controller
2. Upper Door
3. Chimney Bypass Operating Handle
4. Gasification Chamber
5. Primary Air Inlet
6. Fan Shutter
7. Fan
8. Fan Cover
9. Ceramic Combustion Nozzle
10. Secondary Air Modulation Shutter
11. Lower Door Handle
12. Refractory Fire Brick
13. Lower Door
14. Chimney Attachment Flange

15. Chimney Bypass Shutter
16. Heat Exchanger Top Cover
17. Upper Back Cover
18. Water Supply Port
19. Boiler Temperature Probe
20. Over-temperature Sensor
21. Upper Front Cover
22. Exhaust Gas Probe
23. Heat Exchanger Tube
24. Pellet Burner
25. Refractory Concrete Floor
26. Secondary Air Flow
27. Combustion Chamber
28. Direction of Exhaust Gas Flow
29. Return Water Port

30. Auto-fill Port
31. Pellet Reservoir
32. Horizontal Feeder Auger
33. Feeder
34. Drive Gear
35. Igniter
36. Separation Flange
37. TS 130 Port
38. Ultrasonic Sensor
39. Wood Pellet Handle
40. Temperature Safety Sensor
